LiFePO4 Electric Golf Cart Batteries 800 Cycles 24V 10Ah Battery
High-performance 24V LiFePO4 lithium ion battery pack designed specifically for golf trolleys, featuring lightweight construction at only 2.5 kilograms and an impressive 800-cycle lifespan.

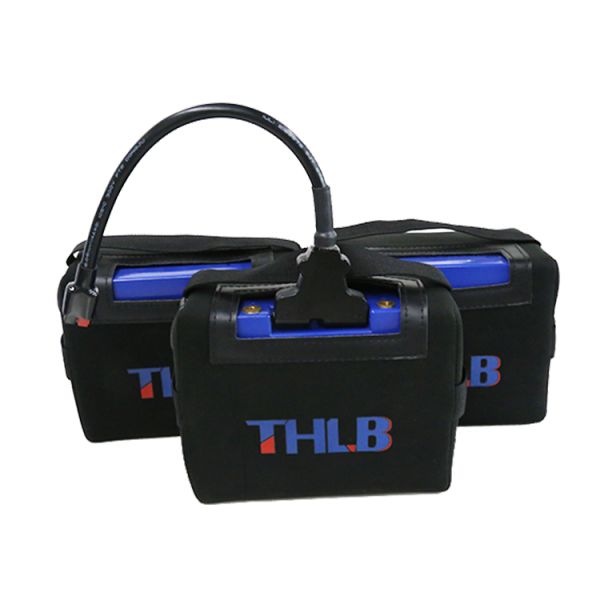

Product Images
Main Kit Components
| 1 x 24V10Ah LiFePO4 Battery Module |
1 x 8S-10A PCM |
1 x Plastic Battery Case |
2 x M8 Terminals |
Product Specifications
| Parameter |
Specification |
| Normal Voltage |
24V |
| Normal Capacity |
10Ah |
| Battery Energy |
240Wh |
| Inner Resistance |
< 60mΩ |
| Battery Cycle Life |
1500 Times @100%DOD
2000 Times @80%DOD |
| Cell Configuration |
LiFePO4 18650 3.2V 1500mAh-8S7P |
| PCM |
YES |
| Reference Battery Weight |
2.5 kg |
| Battery Encapsulation |
Plastic Case |
| Charge Voltage |
28.8V |
| Charge Mode |
CC/CV |
| Normal Charge Current |
<=10A |
| Normal Discharge Current |
10A |
| Max. Continuous Output Current |
30A |
| Max. Continuous Output Power |
720W |
| Passive Protection Function |
Over charge protection; Over discharge protection; Over current protection, etc |
| Operation Temperature Range |
Charge: 0°C - 45°C
Discharge: -20°C - 60°C |
| Battery Storage Temperature |
-20°C - 25°C |
| Individual Cell Approval |
CE / RoHS / UN38.3 / UL 1642 / IEC 62133 / CB / KC / BIS |

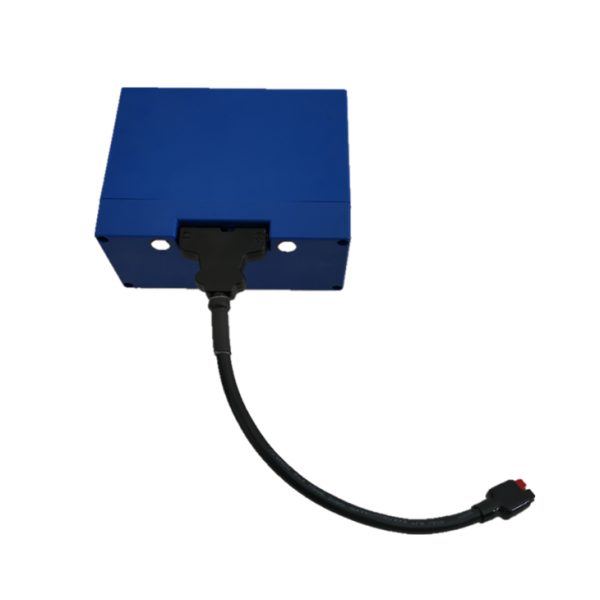

Additional Product Views
Our Company
Packing & Delivery
Frequently Asked Questions
Q1. Can I have few free samples for evaluation?
A: Yes, free samples are ok, but not covering shipping cost
Q2. What about the lead time?
A: Samples needs 3-5 days
B: Mass production time is approx 2-3 weeks
Q3. Do you have any MOQ limit for bulk order?
A: MOQ=100pcs
Q4. How do you ship the goods and how long does it take to arrive?
A: Samples and small quantity trial order: Courier shipping with door to door; normally 6-10 days
B: Big quantity bulk order: Air shipping or Sea shipping
Q5. How to proceed an order for Lithium ion cell?
A: Pls confirm the cell models that you are interested in
B: We send cell specifications and best quotation to you for reference
C: You confirm the quotation and inform quantity or issue PO, we will send PI accordingly
D: After deposit or full payment confirmed, production started
Q6. Is it OK to print my logo on lithium ion cell product?
A: Yes. OEM is welcomed
Q7: Do you offer guarantee for the products?
A: Yes, 3-5 Years Warranty
