26500 3600mAh THLB Battery 3.2V Normal Storage 0.5C Flat Top Battery
26.3x65.2mm Lithium Ion Rechargeable Battery THLB 3.2V 26500 3600mAh Normal Storage Type Flat Top
Product Specifications
| No. |
Item |
Standard |
Note |
| 1 |
Standard Capacity |
3600mAh |
0.5C,( current value of 4500mA at 1C) |
| 2 |
Min Capacity Range |
3500mAh |
0.5C |
| 3 |
Standard Voltage |
3.2 V |
|
| 4 |
Alternating Internal Resistance |
≤18mΩ |
|
| 5 |
Charge Conditions |
Cut-off Voltage: 3.65±0.05V
Cut-off Current: 0.01C |
constant-current charge to 3.6V at 0.5C,constant voltage charge to stop until 0.01C mA |
| 6 |
Max. Charging Current |
3.6A |
|
| 7 |
Discharge Cut-off Voltage |
2.0V |
|
| 8 |
Standard Discharge Current |
3.6A |
|
| 9 |
Fast Discharge Current |
1.8A |
|
| 10 |
Max. Continuous Discharge Current |
10.8A |
|
| 11 |
Pulse Discharge Current |
15A,5s |
|
| 12 |
Cycle Characteristic |
1500 times(100%DOD)
2500 times(80%DOD)
4000 times(50%DOD) |
the residual capacity is no less than 80% of rated capacity at 1C rate |
| 13 |
Working Temperature |
Charge: 0°C~45°C
Discharge: -20°C~60°C |
|
| 14 |
Storage Temperature |
-20°C ~ 45°C |
Short-term storage (< 3 months) |
| 15 |
Battery Weight |
91g (Approx.) |
|

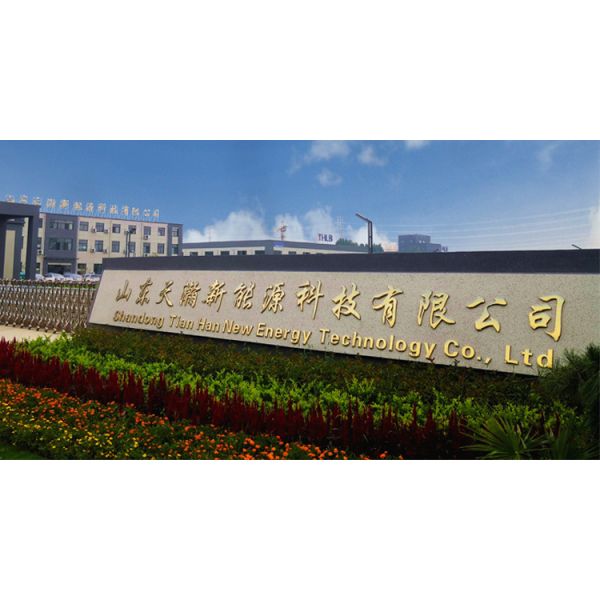

Our Company
Packing & Delivery
Frequently Asked Questions
Q1. Can I have few free samples for evaluation?
A: Yes, free samples are ok, but not covering shipping cost
Q2. What about the lead time?
A: Samples needs 3-5 days
B: Mass production time is approx 2-3 weeks
Q3. Do you have any MOQ limit for bulk order?
A: MOQ=100pcs
Q4. How do you ship the goods and how long does it take to arrive?
A: Samples and small quantity trial order: Courier shipping with door to door; normally 6-10 days
B: Big quantity bulk order: Air shipping or Sea shipping
Q5. How to proceed an order for Lithium ion cell?
A: Pls confirm the cell models that you are interested in
B: We send cell specifications and best quotation to you for reference
C: You confirm the quotation and inform quantity or issue PO, we will send PI accordingly
D: After deposit or full payment confirmed, production started
Q6. Is it OK to print my logo on lithium ion cell product?
A: Yes. OEM is welcomed
Q7: Do you offer guarantee for the products?
A: Yes, 3-5 Years Warranty
