51.2V Off Grid Solar Battery - 5KW Energy Storage
51.2V Nominal Voltage Off Grid Solar System 5KW Complete Home Energy System
Ternary Battery Pack Specifications
| Items |
Parameters |
| Battery Model |
IFR-51.2V100.0Ah |
| Nominal voltage |
51.2V |
| Typical capacity |
100Ah ± 3Ah (At 0.2C discharge rate) |
| Working current |
50A |
| Max discharge current |
100A |
| Cut-off voltage |
about 37.5V |
| Voltage |
54.0V±0.2V |
| Charge |
0℃～+55℃ |
| Discharge |
-20℃～+60℃ |
| Discharging Inner Resistance |
≤22mΩ |
| Protection Function |
Overcharge, over-discharge, over-current, temperature, short circuit and other protection functions |
| Communication mode |
UART/RS485/RS232/CAN |
| Output mode |
Barrier terminal (KT8-10-2P/Black/Pitch 21/Current 115A/M6 screw) |
| Weight |
41±1kg |
| Size(L*W*H) |
(482*460*177)±2mm |
| Cycle |
≥1500,and the capacity retention rate is ≥80% |

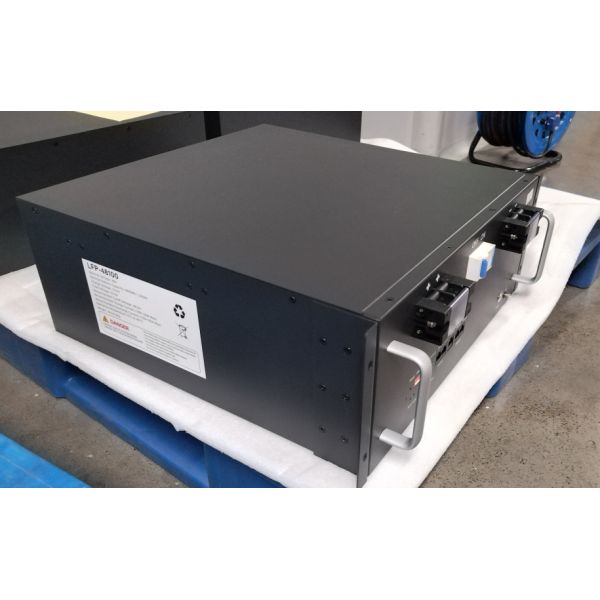

Product Images
Packaging and Delivery
Company Profile
Shandong Tian Han New Energy Technology Co., Ltd is an ISO 9001:2015 certified manufacturer, specializing in R&D, manufacturing, sales, and service of lithium batteries, power lithium batteries, battery packs, and BMS etc.
Our batteries have passed CB, CE, UL, RoHS, REACH, BIS, UN38.3, MSDS etc certification to ensure quality.
Customization/OEM/ODM are available.
Frequently Asked Questions
Q1: Are you a factory or a trading company?
A1: We are a professional rechargeable lithium-ion battery and LifePO4 battery manufacturer located in Shandong. We passed ISO9001:2008 quality system certification.
Q2: Can I have samples to test? And what is lead time for sample order?
A2: Yes, we can supply samples. The lead time for samples is 7-10 days, and buyer pays for sample cost and shipping cost.
Q3: Do you provide after-sales service?
A3: Yes, the warranty is 3 years. If any quality problems on our side in this period, we can send new one as replacement.
Q4: What is your company's advantage?
A4: We only supply high level quality of lithium battery and we guarantee on-time shipment. We also provide excellent after sales service.
Q5: Do you accept OEM/ODM?
A5: Yes, it is available.
Q6: What information do you need to make a customized battery pack?
A6: We need the details below: 1. Size of the battery pack you need in mm. 2. Capacity of the Battery pack. 3. Voltage of the battery pack. 4. Max discharge current. 5. Cable and connector types you need. 6. Casing and Terminals if required. 7. Any protection circuits you may need.
Q7: Are you battery real capacity?
A7: All of our battery cells with Grade A, 100% new and real capacity.
Q8: What kind of certificates do you have?
A8: We can provide CE, ROHS, FCC, IEC62133, MSDS, UN38.3.
Q9: What is your lead time for the mass production?
A9: Generally speaking, about 25-30 days depending on different items after getting down payment and confirmation about the samples.
